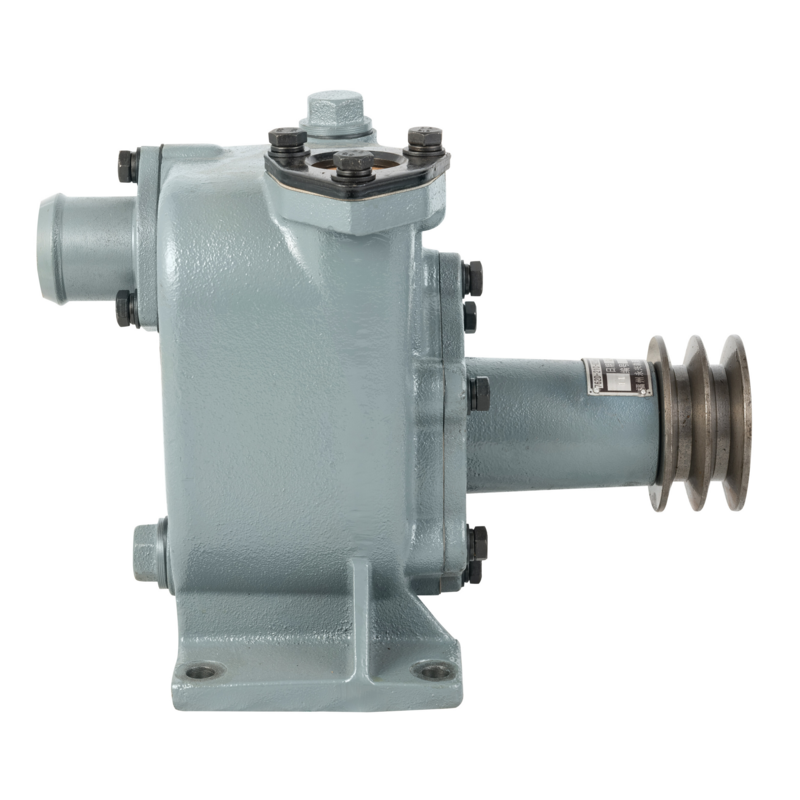

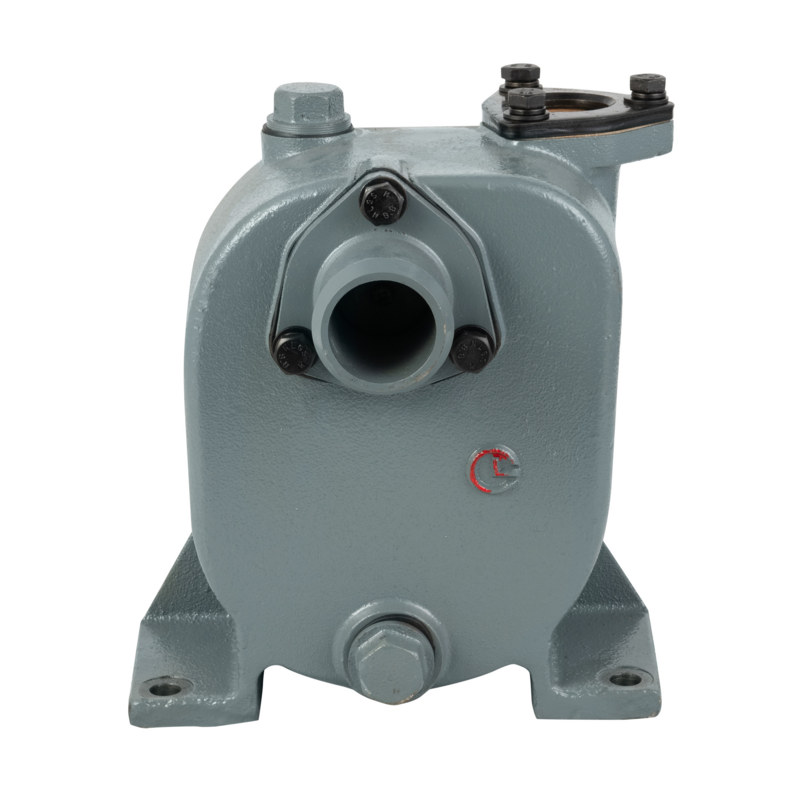

6135Ca-C Marine Seawater Cooling Pump
6135Ca-C / 762D-21C-000a
Self-priming seawater cooling pump developed for the 135 series marine diesel engine cooling circuit.
Matching engines
SDEC 135 seriesWeichai 160 seriesWeichai Deutz TD226B seriesWeichai GR6160 series
Model parameters
Data from Yongxing Pump product brochure
- Model
- 6135Ca-C
- Part No.
- 762D-21C-000a
- Speed (r/min)
- 2800
- Head (m)
- 15
- Flow (t/h)
- ≥20
- Self-priming height (m)
- 2
- Self-priming time (s)
- ≤35
- Compatible engine
- 上柴135系列；潍柴160系列；TD226B；GR6160
Application scenarios
- Marine diesel engine cooling
- Generator and power units
- Freshwater and seawater circulation
Series features
- Compact structure
- Stable operation and easy maintenance
- Strong self-priming capability on selected models
- Developed for major engine manufacturers
- Bronze or corrosion-resistant wet-end options
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
