MN Series Agricultural Centrifugal Pumps
Durable agricultural centrifugal pumps for irrigation, drainage, aquaculture and general water transfer.
Application scenarios
- Agricultural and forestry irrigation
- Drainage
- Aquaculture
- Industrial and residential water supply
Representative models
Key features
- Mature hydraulic design
- Easy maintenance
- Multi-position oil seal design
- 45# steel shaft with sealed bearings
- Broad model coverage from 100 mm to 200 mm inlet sizes
Product Overview
The MN series agricultural centrifugal pump is based on a mature hydraulic design and compact structure. It is known for easy maintenance and broad coverage of specifications, and is suitable for agricultural and forestry irrigation, drainage, aquaculture, industrial water transfer and residential water supply.
Model Indication
- MN: agricultural centrifugal pump series code
- 150: pump suction diameter
- 20: hydraulic head in meters
- B/C/D: belt drive, diesel engine direct drive or electric motor direct drive
Models
Photographed representative models
Click a model to view its photo angles, model description and corresponding parameter row. The full series table below keeps models without current photos for selection reference.

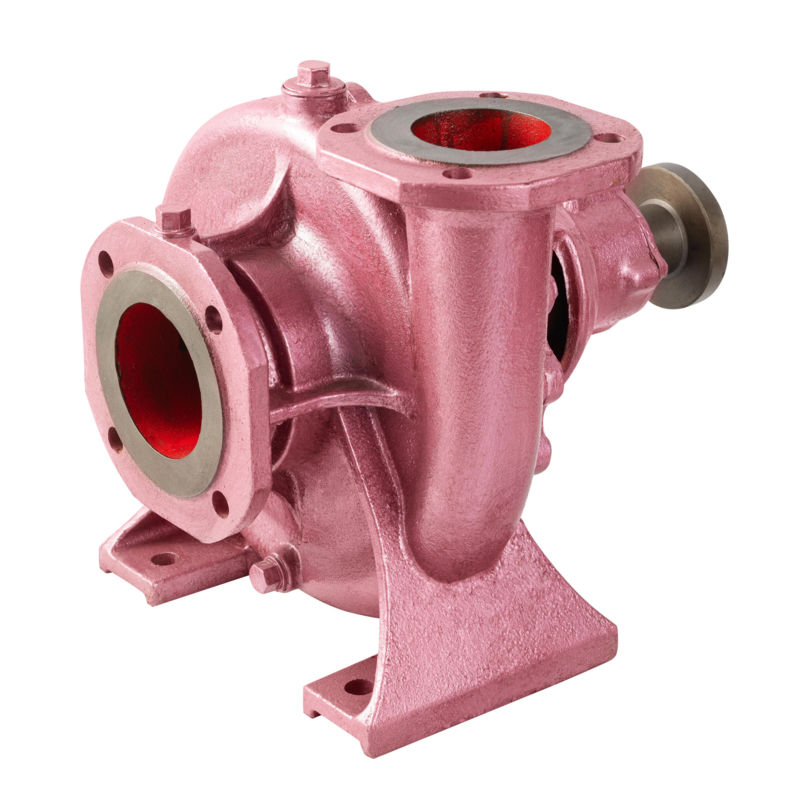

MN100-18
MN100-18 Agricultural Centrifugal Pump
Agricultural centrifugal pump for irrigation, drainage and general water transfer.
View model details

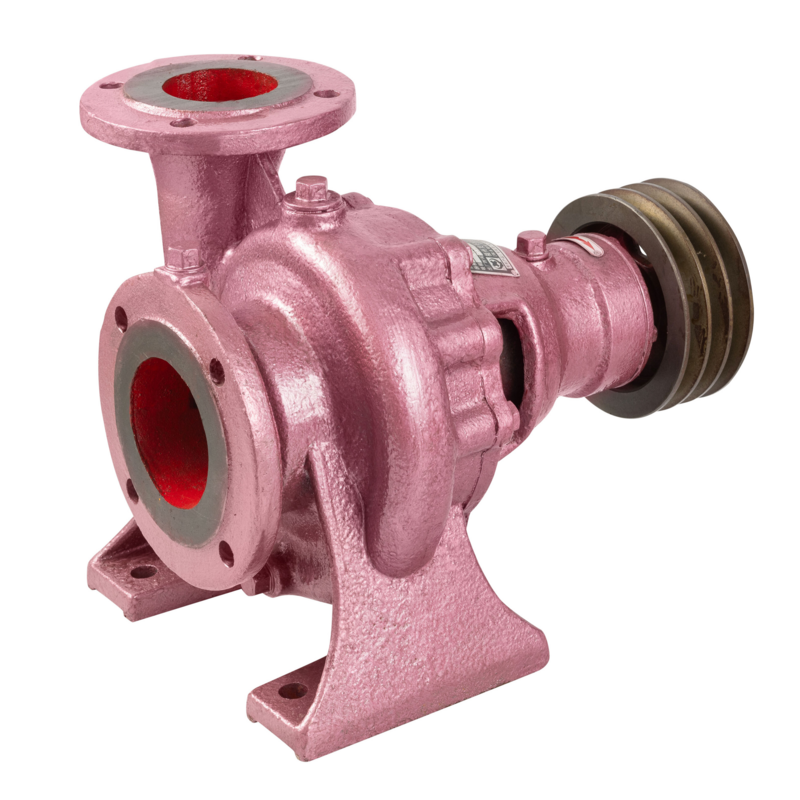

MN100-32
MN100-32 Agricultural Centrifugal Pump
Higher-head MN series model for irrigation and drainage applications.
View model details
MN200-8
MN200-8 Agricultural Centrifugal Pump
Large-flow MN series pump for agricultural and industrial water transfer.
View model details
MN series performance parameters
Selected rows from the brochure. B/C/D indicate belt drive, diesel direct drive and motor direct drive.
| Model | Suction dia. (mm) | Speed (r/min) | Head (m) | Flow (t/h) | Suction range (m) | Power (kW) |
|---|---|---|---|---|---|---|
| MN100-13 | 100 | 1450 | 13.5 | 72 | 6.9 | 4 |
| MN100-15 | 100 | 1450 | 15.2 | 100 | 6.5 | 7.5 |
| MN100-18 | 100 | 1450 | 17.7 | 82.8 | 6.7 | 5.5 |
| MN100-21 | 100 | 1600 | 21.5 | 91.4 | 6.7 | 7.5 |
| MN100-31 | 100 | 2200 | 30.9 | 109.2 | 6.9 | 15 |
| MN100-22 | 100 | 2900 | 22.7 | 84.6 | 6.7 | 7.5 |
| MN100-24 | 100 | 2900 | 24.5 | 73.4 | 6.7 | 7.5 |
| MN100-27 | 100 | 2900 | 27 | 76.9 | 6.7 | 7.5 |
| MN100-32 | 100 | 2900 | 31.8 | 83.5 | 6.7 | 11 |
| MN100-35 | 100 | 2900 | 35 | 87.5 | 6.8 | 11 |
| MN100-37 | 100 | 2900 | 37 | 108 | 6.8 | 15 |
| MN100-40 | 100 | 2900 | 40 | 93.6 | 6.8 | 15 |
| MN150-11 | 150 | 1450 | 11.7 | 118.6 | 6.8 | 5.5 |
| MN150-13 | 150 | 1450 | 13.7 | 129.4 | 7.3 | 7.5 |
| MN150-15 | 150 | 1450 | 15 | 136.8 | 7.3 | 7.5 |
| MN150-18 | 150 | 1450 | 17.6 | 157.8 | 7.2 | 11 |
| MN150-20 | 150 | 1450 | 20.2 | 169.2 | 6.8 | 15 |
| MN150-24 | 150 | 1600 | 24.6 | 186.7 | 6.8 | 18.5 |
| MN150-28 | 150 | 1720 | 28.4 | 200.7 | 6.8 | 22 |
| MN150-45 | 150 | 2900 | 45.1 | 232.5 | 6.8 | 37 |
| MN200-8 | 200 | 1450 | 8.8 | 234.1 | 6.6 | 7.5 |
| MN200-10 | 200 | 1450 | 10.7 | 257.5 | 6.6 | 11 |
| MN200-13 | 200 | 1450 | 13.4 | 288 | 6.6 | 15 |
| MN200-16 | 200 | 1600 | 16.3 | 316.8 | 6.6 | 18.5 |
| MN200-19 | 200 | 1720 | 18.8 | 341.6 | 6.6 | 22 |
