Product model

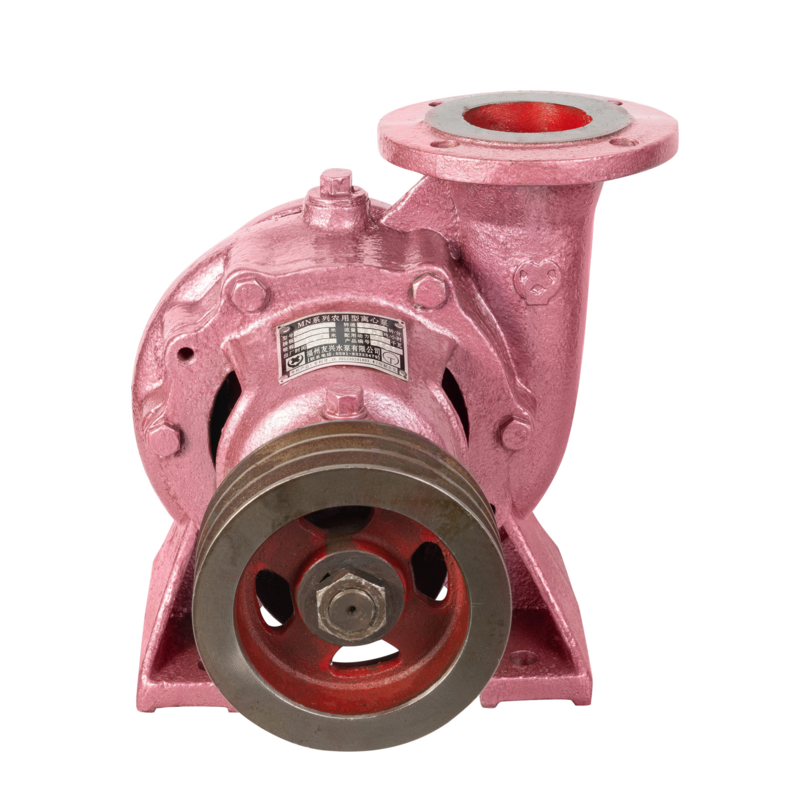

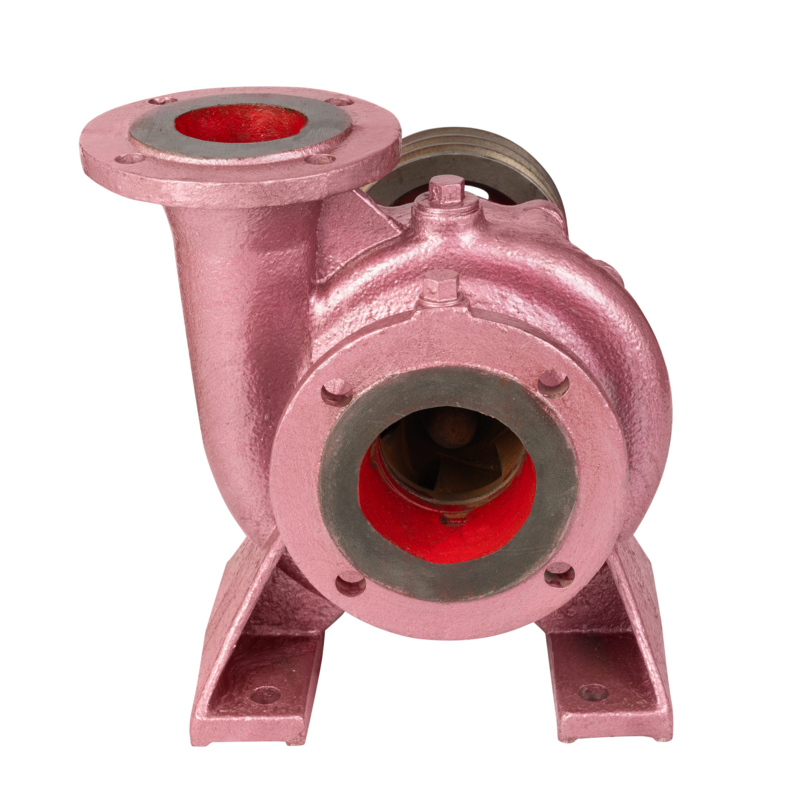

MN100-32 Agricultural Centrifugal Pump
MN100-32
Higher-head MN series model for irrigation and drainage applications.
Model parameters
Data from Yongxing Pump product brochure
- Model
- MN100-32
- Suction dia. (mm)
- 100
- Speed (r/min)
- 2900
- Head (m)
- 31.8
- Flow (t/h)
- 83.5
- Suction range (m)
- 6.7
- Power (kW)
- 11
Application scenarios
- Agricultural and forestry irrigation
- Drainage
- Aquaculture
- Industrial and residential water supply
Series features
- Mature hydraulic design
- Easy maintenance
- Multi-position oil seal design
- 45# steel shaft with sealed bearings
- Broad model coverage from 100 mm to 200 mm inlet sizes
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
