MC Series Marine Centrifugal Pumps

Marine centrifugal pumps designed for aquaculture water transfer, ship service and clear water or seawater handling.

Application scenarios

Live fish transportation
Aquaculture circulation
Irrigation and drainage
Industrial and mining water transfer

Representative models

MC100-13MC150-20MC200-13MC250-10

Key features

Simple and maintainable structure
Suction range around 6.5-7.5 m depending on model
High-grade mechanical seal
Stainless shaft, shaft sleeve and nut
Belt, diesel and motor coupling options

Product Overview

The MC series marine centrifugal pumps are improved for coastal aquaculture and live water transport. They can be used as freshwater and seawater cooling pumps, sanitary pumps, fire pumps, sewage pumps, bilge pumps and ballast pumps on ships, and are also suitable for irrigation, drainage and general water transfer where the medium is clean water, seawater or similar liquid with impurity concentration not greater than 3% and temperature below 75 C.

Model Indication

MC T150 - 20 B

MC: marine centrifugal pump series code
T: special power supply mark; direct motor coupling limited to 440V
150: pump suction diameter
20: hydraulic head in meters
B/C/D: belt drive, diesel engine direct drive or electric motor direct drive

Models

Photographed representative models

Click a model to view its photo angles, model description and corresponding parameter row. The full series table below keeps models without current photos for selection reference.

MC100-13

MC100-13 Marine Centrifugal Pump

Compact MC series pump for live fish transport, aquaculture and general marine water transfer.

View model details

MC100-40

MC100-40 Marine Centrifugal Pump

Higher-head MC series marine centrifugal pump for clear water, seawater and similar liquid transfer.

View model details

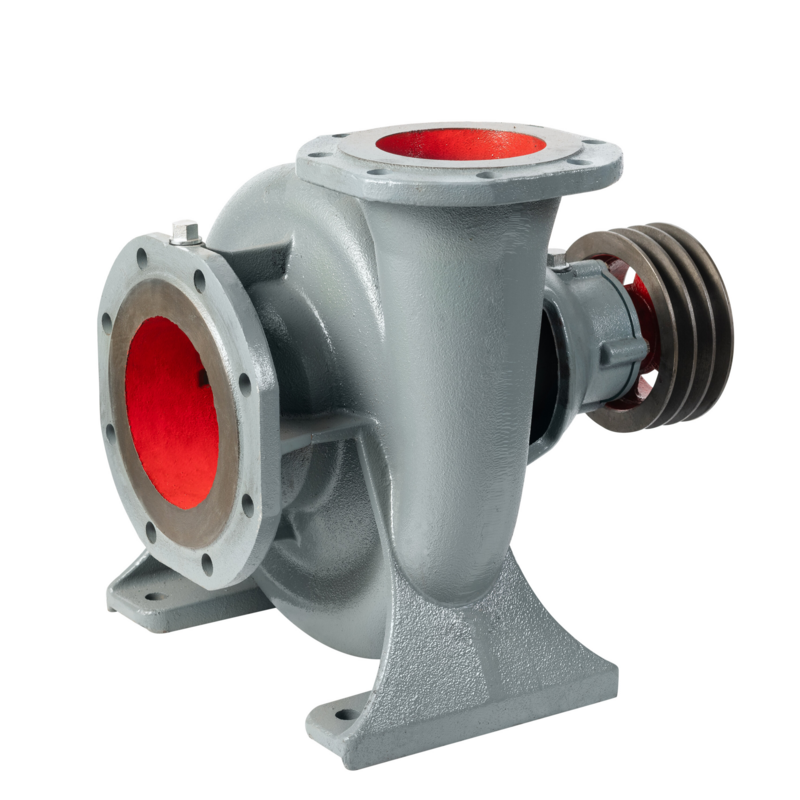

MC150-13

MC150-13 Marine Centrifugal Pump

MC series pump for medium-flow marine, aquaculture and irrigation water transfer conditions.

View model details

MC250-10

MC250-10 Marine Centrifugal Pump

Large-flow MC series pump for ship service, aquaculture circulation and water transfer.

View model details

MC series performance parameters

Selected rows from the brochure. T models indicate special 440V direct motor coupling options.

Model	Suction dia. (mm)	Speed (r/min)	Head (m)	Flow (t/h)	Suction range (m)	Power (kW)
MC100-13	100	1450	13.5	72	6.9	4
MC100-15	100	1450	15.2	100	6.5	7.5
MCT100-17	100	1750	17.1	80.1	7.5	5.5
MC100-18	100	1450	17.7	82.8	6.7	5.5
MCT100-20	100	1750	19.2	84.9	7.5	7.5
MC100-21	100	1600	21.5	91.4	6.7	7.5
MCT100-25	100	1750	25.5	100	6.7	11
MC100-31	100	2200	30.9	109.2	6.9	15
MC100-24	100	2900	24.5	73.4	6.7	7.5
MC100-27	100	2900	27	76.9	6.7	7.5
MC100-32	100	2900	31.8	83.5	6.7	11
MC100-35	100	2900	35	87.5	6.8	11
MC100-37	100	2900	37	108	6.8	15
MC100-40	100	2900	40	93.6	6.8	15
MC150-11	150	1450	11.7	118.6	6.8	5.5
MC150-13	150	1450	13.7	129.4	7.3	7.5
MCT150-14	150	1750	14	132.2	7.5	7.5
MC150-15	150	1450	15	136.8	7.3	7.5
MCT150-16	150	1750	16.5	143.2	7.5	11
MC150-18	150	1450	17.6	157.8	7.2	11
MC150-20	150	1450	20.2	169.2	6.8	15
MCT150-20	150	1750	20	157.6	7.5	15
MC150-24	150	1600	24.6	186.7	6.8	18.5
MCT150-25	150	1750	25.3	189.3	7	18.5
MC150-45	150	2900	45.1	232.5	6.8	37
MC200-8	200	1450	8.8	234.1	6.6	7.5
MC200-10	200	1450	10.7	257.5	6.6	11
MCT200-11	200	1750	11	262.8	7	11
MC200-13	200	1450	13.4	288	6.6	15
MCT200-14	200	1750	13.6	350	6.6	22
MC200-16	200	1600	16.3	316.8	6.6	18.5
MC200-19	200	1720	18.8	341.6	6.6	22
MC250-10	250	1450	10.5	414.2	6.5	18.5
MC250-12	250	1450	12.5	450	6.5	22
MCT250-13	250	1750	13.2	461	6.5	22
MCT250-14	250	1750	13.7	640	6.5	37
MC250-15	250	1600	15.3	496.5	6.5	30
MCT250-18	250	1750	18.2	543.1	6.5	37
