Product Series
ZXC / ZXH Self-Priming Pumps
Self-priming marine centrifugal pumps for seawater aquaculture, vessel service, irrigation and mobile water transfer.
Application scenarios
- Seawater aquaculture
- Fishing vessel deck service
- Ship sanitary, bilge and ballast pumping
- Mobile irrigation and drainage
Representative models
Key features
- Self-priming operation without bottom valve after priming liquid is retained
- External-mixing axial-suction centrifugal design
- Mechanical seal with stainless shaft
- Cast iron or copper impeller options by series
- Handles seawater-like liquids with limited impurities
Model Indication
- 100 / 50: pump suction diameter
- ZXC / ZXH: self-priming marine seawater pump series code
- 36 / 26: hydraulic head in meters
- B/C/D: belt drive, diesel engine direct drive or electric motor direct drive
Models
Photographed representative models
Click a model to view its photo angles, model description and corresponding parameter row. The full series table below keeps models without current photos for selection reference.
80ZXC-23
80ZXC-23 Self-Priming Pump
Self-priming marine seawater pump for seawater aquaculture, deck service and mobile water transfer.
View model details

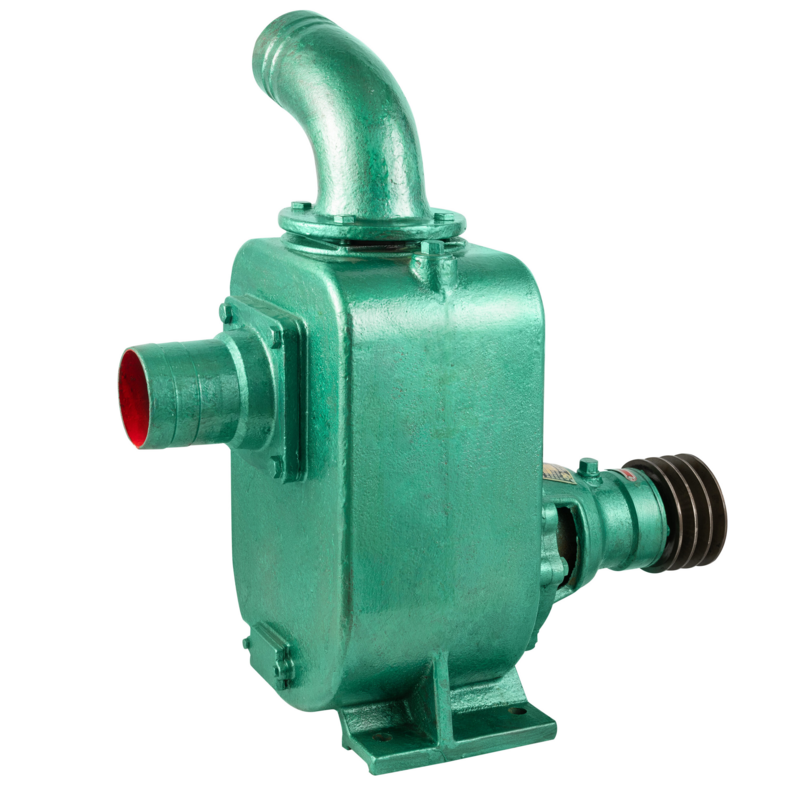

100ZXC-36
100ZXC-36 Self-Priming Pump
Higher-head self-priming pump for mobile irrigation, drainage and marine seawater service.
View model details

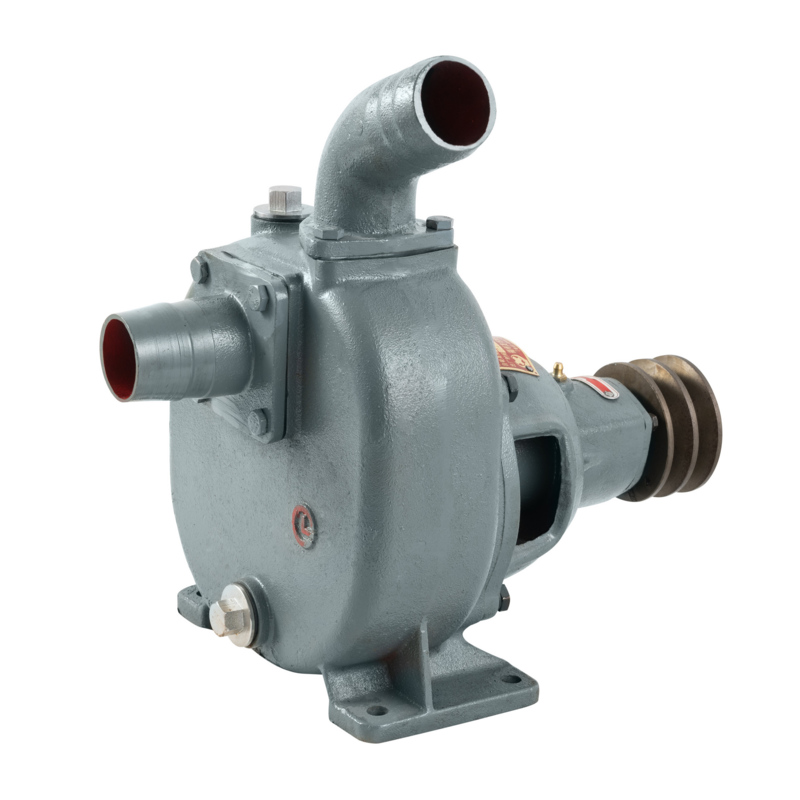

50ZXH-26
50ZXH-26 Self-Priming Pump
Compact self-priming pump with copper impeller and stainless shaft for seawater-like media.
View model details
ZXC / ZXH series performance parameters
ZXC and ZXH are self-priming pump series. Power is listed as kW or PS according to the brochure.
| Series | Model | Speed (r/min) | Head (m) | Flow (t/h) | Suction height (m) | Power |
|---|---|---|---|---|---|---|
| ZXC | 80ZXC-18C | 2600 | 18 | 56 | 5 | 7ps |
| ZXC | 80ZXC-23D | 2950 | 23.2 | 63.5 | 5 | 7.5kW |
| ZXC | 100ZXC-17C | 2000 | 17 | 61 | 4.5 | 8ps |
| ZXC | 100ZXC-36D | 2950 | 36 | 89 | 5 | 15kW |
| ZXH | 50ZXH-21C | 2600 | 21 | ≥19 | 5 | 3ps |
| ZXH | 50ZXH-26D | 2900 | 26.1 | ≥20 | 5 | 3kW |
| ZXH | 50ZXH-28C | 3000 | 28 | ≥22 | 5 | 5ps |
