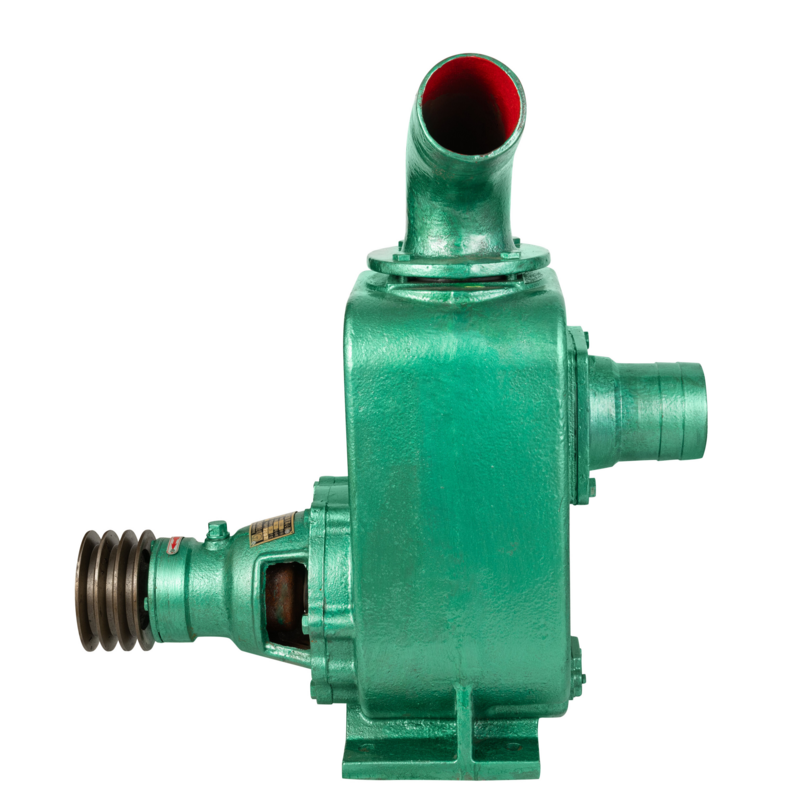

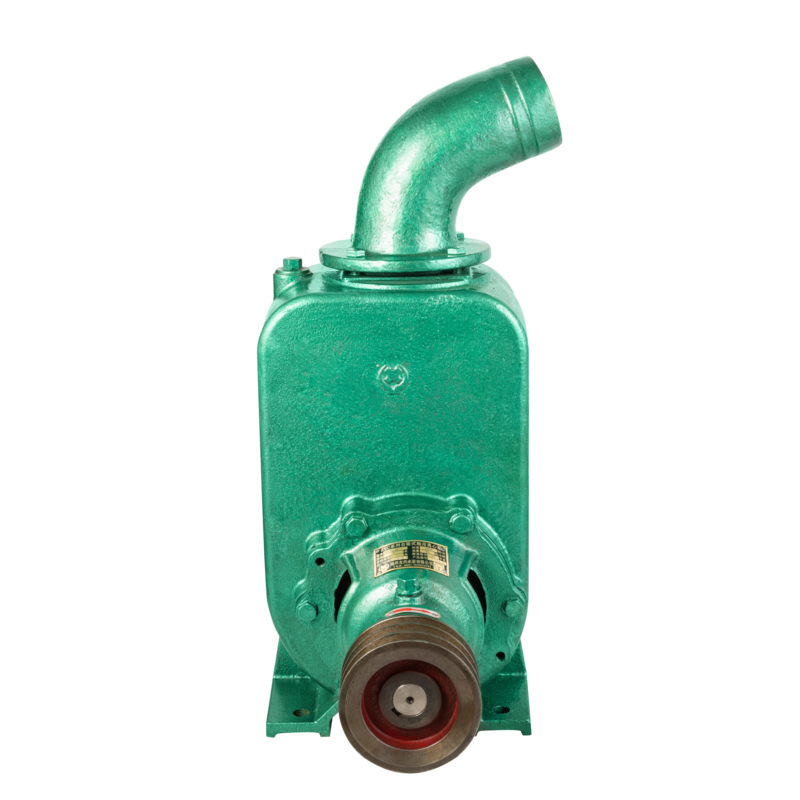

100ZXC-36 Self-Priming Pump
100ZXC-36
Higher-head self-priming pump for mobile irrigation, drainage and marine seawater service.
Model parameters
Data from Yongxing Pump product brochure
- Series
- ZXC
- Model
- 100ZXC-36D
- Speed (r/min)
- 2950
- Head (m)
- 36
- Flow (t/h)
- 89
- Suction height (m)
- 5
- Power
- 15kW
Application scenarios
- Seawater aquaculture
- Fishing vessel deck service
- Ship sanitary, bilge and ballast pumping
- Mobile irrigation and drainage
Series features
- Self-priming operation without bottom valve after priming liquid is retained
- External-mixing axial-suction centrifugal design
- Mechanical seal with stainless shaft
- Cast iron or copper impeller options by series
- Handles seawater-like liquids with limited impurities
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
