Product Series
Engine Cooling Pumps
Seawater and freshwater cooling pumps developed for marine diesel engines and long-term engine OEM supply.
Application scenarios
- Marine diesel engine cooling
- Generator and power units
- Freshwater and seawater circulation
Representative models
Key features
- Compact structure
- Stable operation and easy maintenance
- Strong self-priming capability on selected models
- Developed for major engine manufacturers
- Bronze or corrosion-resistant wet-end options
Models
Photographed representative models
Click a model to view its photo angles, model description and corresponding parameter row. The full series table below keeps models without current photos for selection reference.
6135Ca-C / 762D-21C-000a
6135Ca-C Marine Seawater Cooling Pump
Self-priming seawater cooling pump developed for the 135 series marine diesel engine cooling circuit.
Matching engines
View model details
WD615

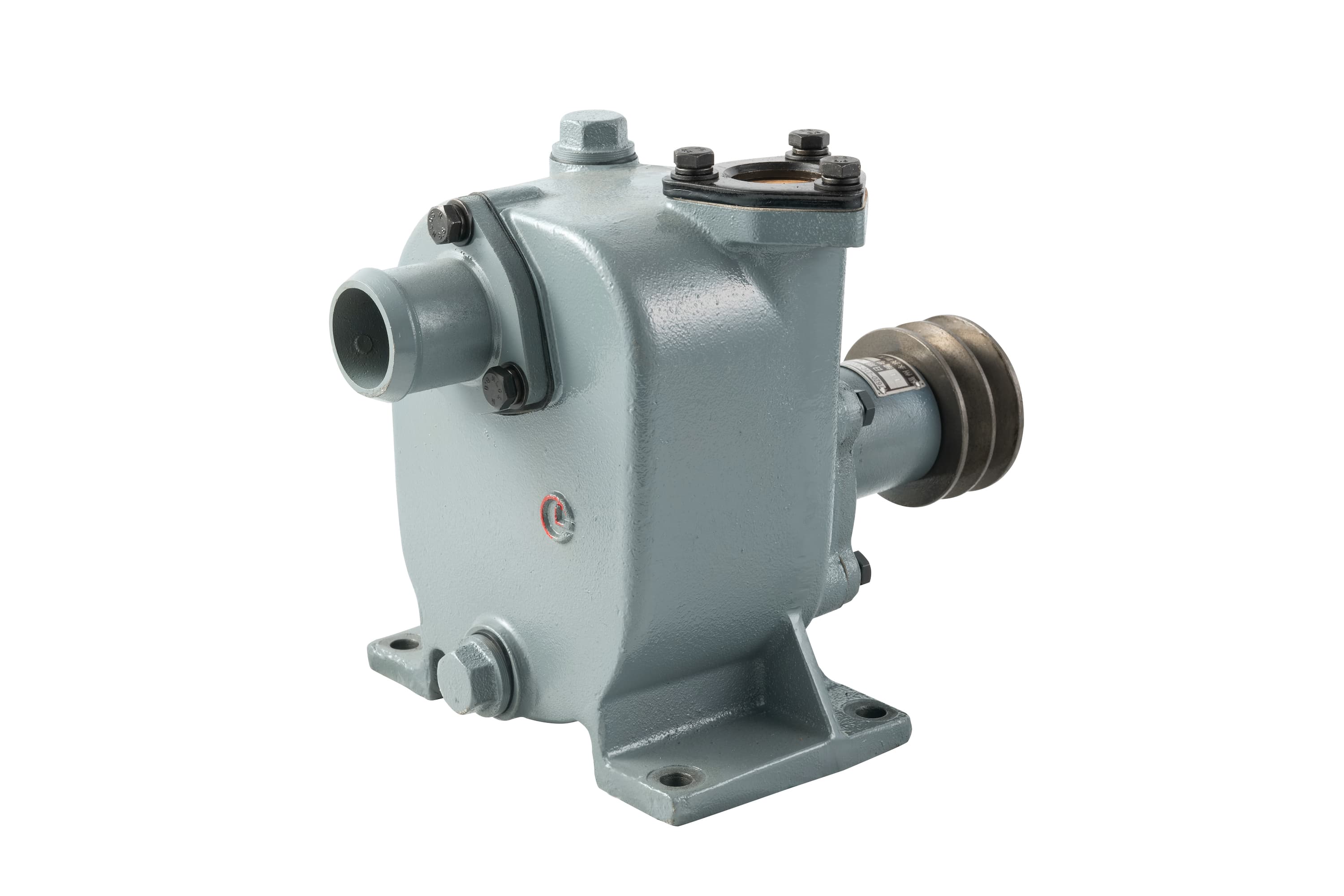

WD615 Marine Seawater Cooling Pump
Compact seawater cooling pump for WD615 marine diesel engine matching.
Matching engines
View model details
6135CaB / 762D-21-000

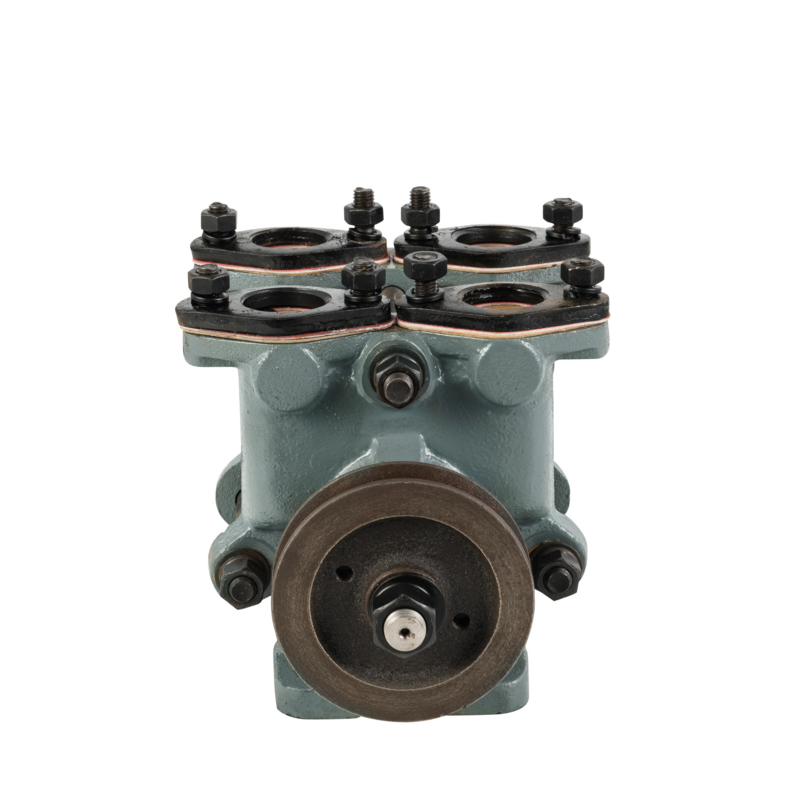

6135CaB Seawater Cooling Pump
Double-inlet and double-outlet seawater cooling pump; can also be configured for single inlet and outlet.
Matching engines
View model details

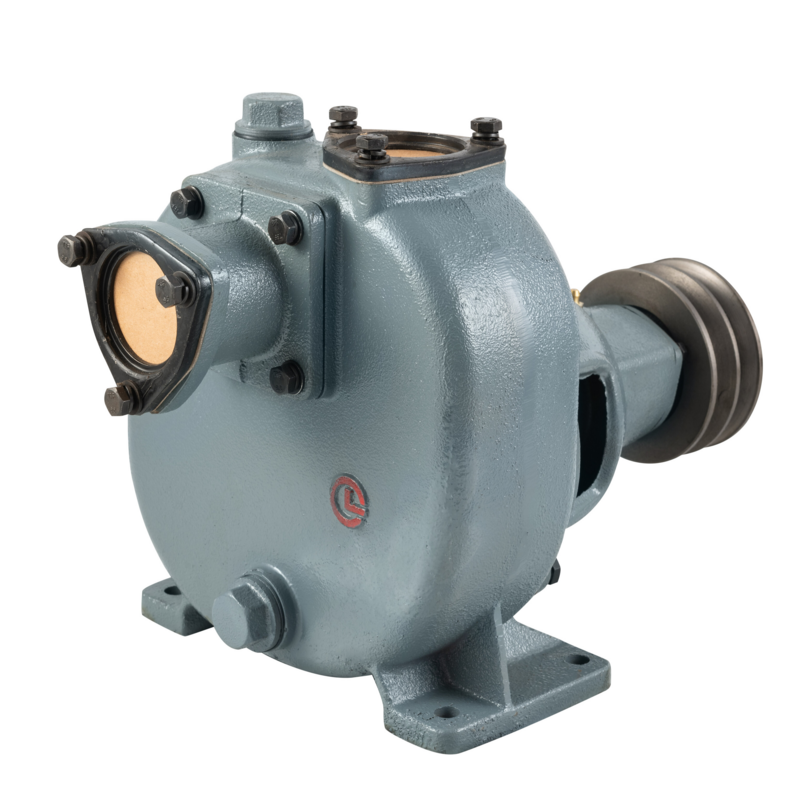

N6160ZC-00
N6160ZC Marine Seawater Cooling Pump
External-mixing self-priming pump with 50 mm inlet and 50 mm outlet described in the brochure.
Matching engines
View model details
G6135ZLCa / G21-000-01

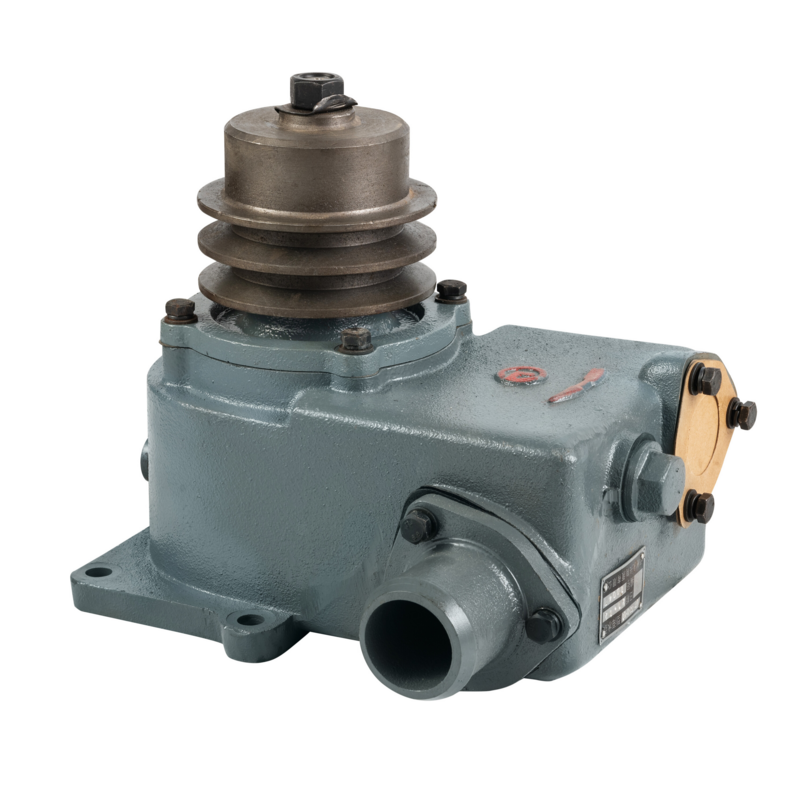

G6135ZLCa Marine Seawater Cooling Pump
Vortex seawater pump matched with SDEC G6128 series marine diesel engines.
Matching engines
View model details
12V135Ca / 772-21-000b

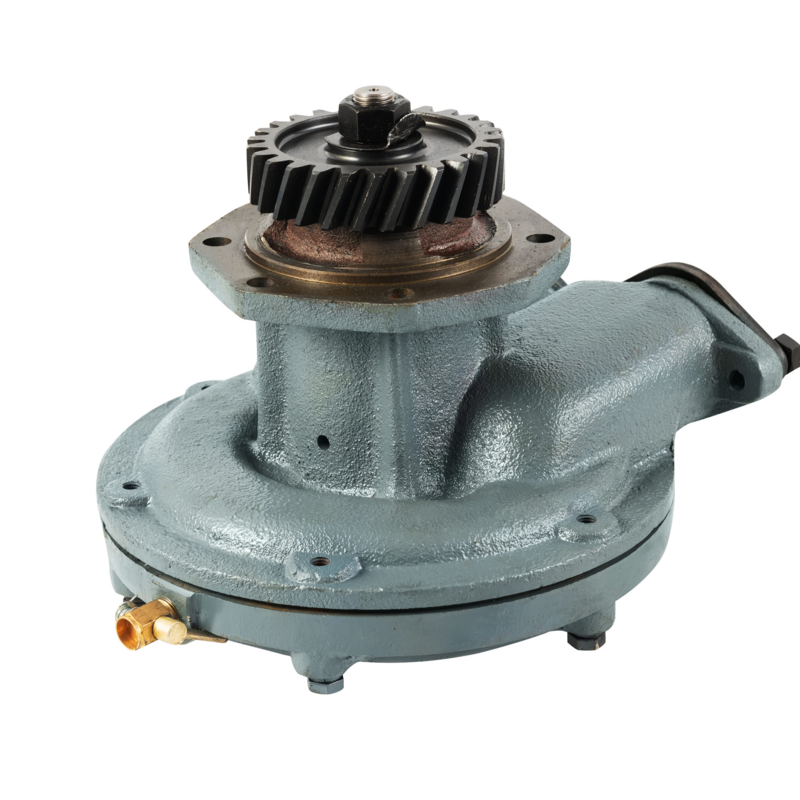

12V135Ca Marine Seawater Cooling Pump
Seawater cooling pump matched with the SDEC 12V135 series marine engine.
Matching engines
View model details

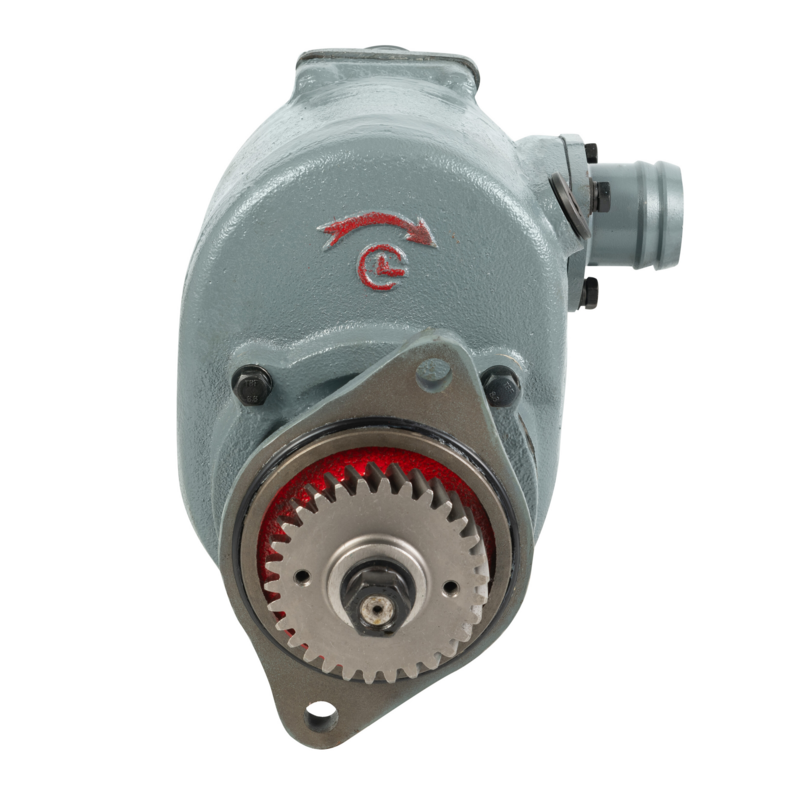

D6114ZLCaB / D21-001-31
D6114ZLCaB Bronze Impeller Seawater Pump
Bronze impeller seawater pump matched with SDEC D683 series marine diesel engines.
Matching engines
View model details
D6114ZLCaB / D21-000-32

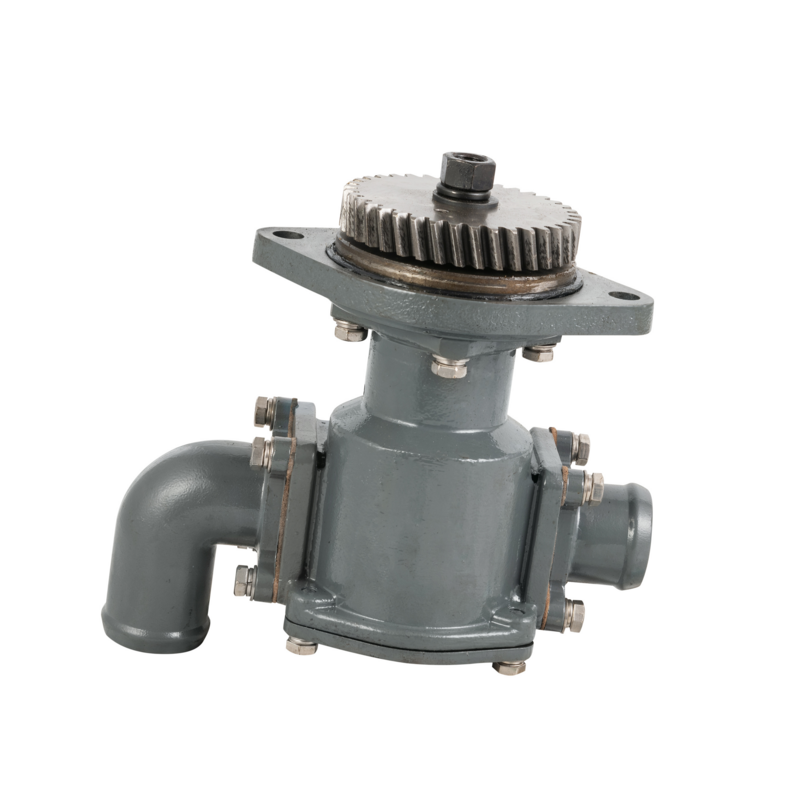

D6114ZLCaB Rubber Impeller Seawater Pump
Flexible rubber impeller seawater pump with compact structure and strong suction performance.
Matching engines
View model details
12V135 / 771-20-000b

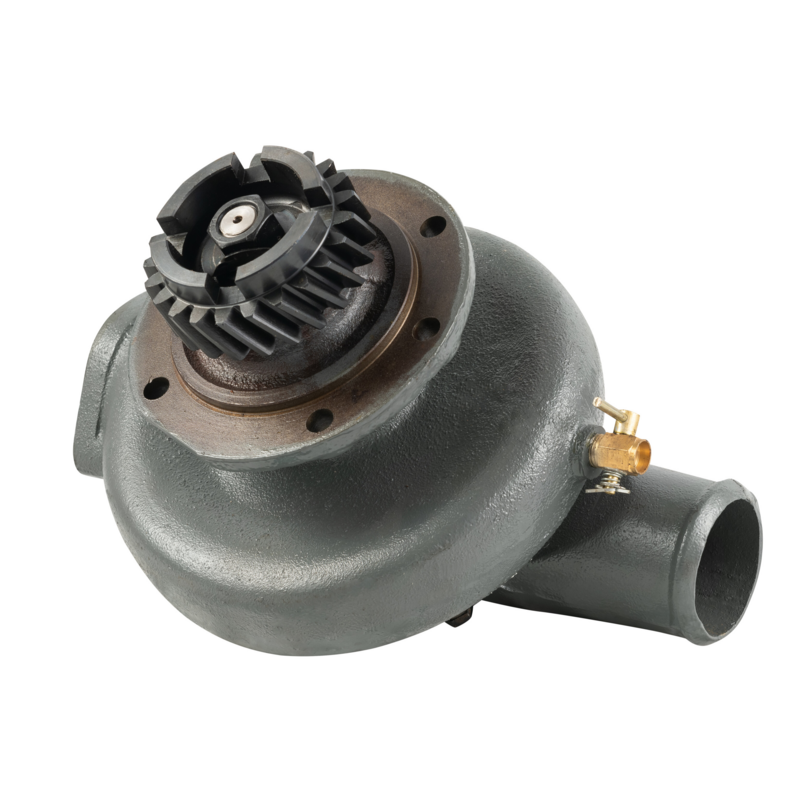

12V135 Freshwater Cooling Pump
Freshwater cooling pump matched with the SDEC 12V135 diesel engine series.
Matching engines
View model details
N6160.28 / N6160.28-00

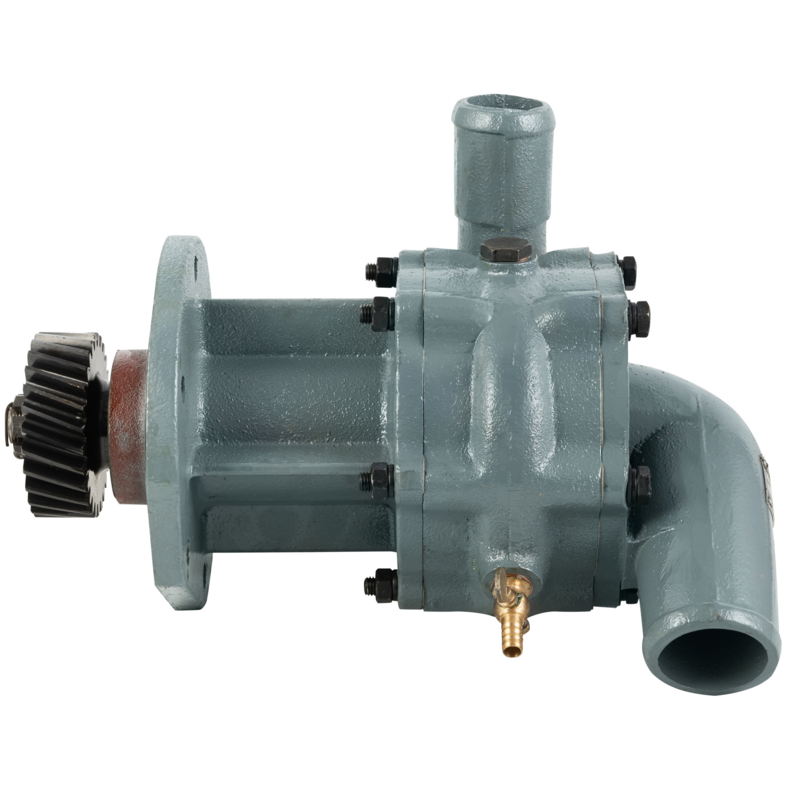

N6160.28 Freshwater Cooling Pump
Freshwater cooling pump matched with Ningbo C.S.I. and Zibo diesel engine applications.
Matching engines
View model details
6135D-3 / 6135Q-1
6135D-3 / 6135Q-1 Freshwater Cooling Pump
Freshwater cooling pump for SDEC 135 series engine sets and engineering machinery.
Matching engines
View model details
6135G / 6135Ca

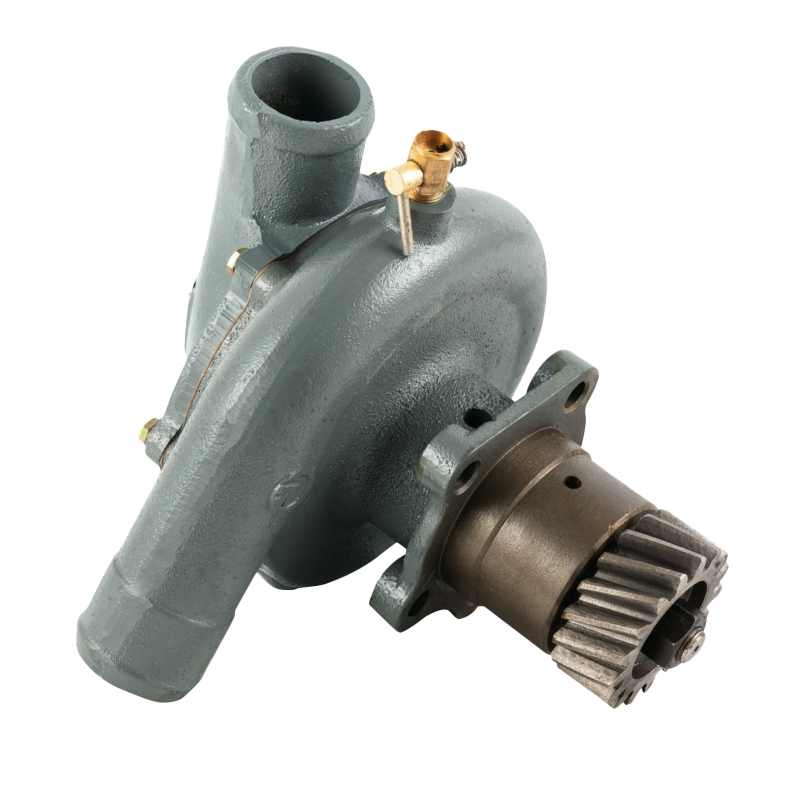

6135G / 6135Ca Freshwater Cooling Pump
Freshwater cooling pump for SDEC 135 series land-use and marine diesel engines.
Matching engines
View model details
Performance parameters from brochure
Engine cooling pump data is listed according to the original brochure. Some freshwater pump models do not require self-priming data.
| Model | Part No. | Speed (r/min) | Head (m) | Flow (t/h) | Self-priming height (m) | Self-priming time (s) | Compatible engine |
|---|---|---|---|---|---|---|---|
| 6135Ca-C | 762D-21C-000a | 2800 | 15 | ≥20 | 2 | ≤35 | 上柴135系列；潍柴160系列；TD226B；GR6160 |
| WD615 | - | 2800 | 15 | ≥20 | 2 | ≤35 | 杭发/中国重汽 WD615 系列 |
| 6135CaB | 762D-21-000 | 2800 | 5 | ≥5.5 | 2 | ≤10 | 上柴135系列（双级双吸泵） |
| N6160ZC | N6160ZC-00 | 3000 | 20 | ≥22 | 2 | ≤60 | 宁波中策 N6160 |
| G6135ZLCa | G21-000-01 | 3000 | 10 | ≥18 | 2.5 | ≤90 | 上柴 G6128 系列船用柴油机 |
| 12V135Ca | 772-21-000b | 1875 | 5 | ≥23 | 2 | ≤30 | 上柴 12V135 系列船用发动机 |
| D6114ZLCaB 铜叶轮 | D21-001-31 | 3080 | 15 | ≥12 | 2 | ≤90 | 上柴 D683 系列船用柴油发动机 |
| D6114ZLCaB 橡胶叶轮 | D21-000-32 | 2500 | 15 | ≥12 | 2 | ≤15 | 上柴 D683 系列船用柴油发动机 |
| 12V135 | 771-20-000b | 2250 | 8 | ≥19 | / | / | 上柴 12V135 系列柴油发动机 |
| N6160.28 | N6160.28-00 | 2440 | 12 | ≥21 | / | / | 宁动 N160；淄博 Z170 |
| 6135D-3 / 6135Q-1 | 764C-20-000a / 763C-20-000a | 2250 | 5.8 | ≥12.3 | / | / | 上柴135系列发动机组；工程机40装载机 |
| 6135G / 6135Ca | 761G-20-000c / 762D-20-000a | 2250 | 6 | ≥12.3 | / | / | 上柴135系列陆用、船用柴油机 |
