Product model

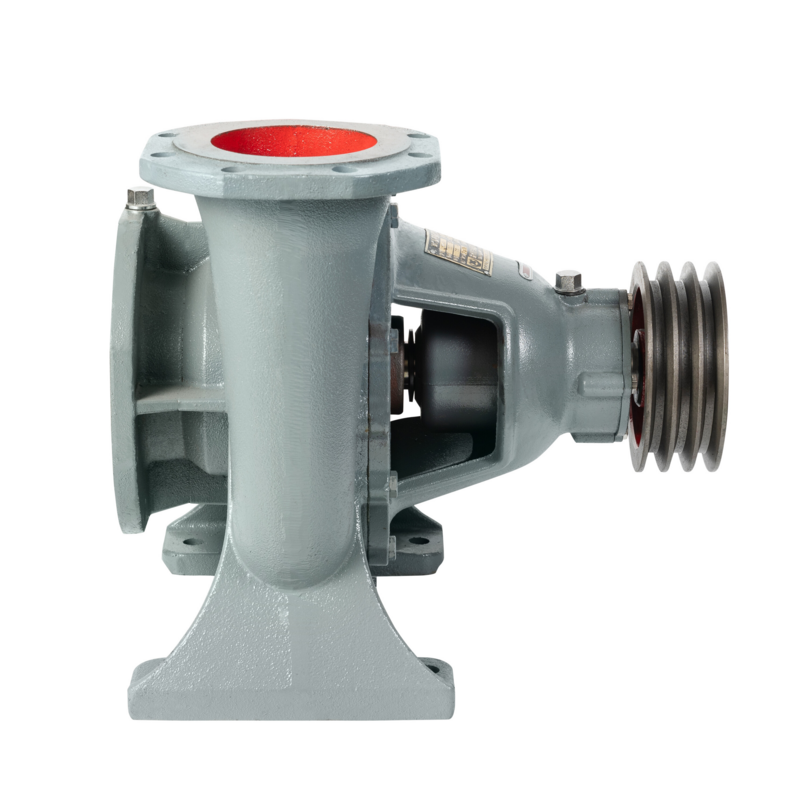

MC150-13 Marine Centrifugal Pump
MC150-13
MC series pump for medium-flow marine, aquaculture and irrigation water transfer conditions.
Model parameters
Data from Yongxing Pump product brochure
- Model
- MC150-13
- Suction dia. (mm)
- 150
- Speed (r/min)
- 1450
- Head (m)
- 13.7
- Flow (t/h)
- 129.4
- Suction range (m)
- 7.3
- Power (kW)
- 7.5
Application scenarios
- Live fish transportation
- Aquaculture circulation
- Irrigation and drainage
- Industrial and mining water transfer
Series features
- Simple and maintainable structure
- Suction range around 6.5-7.5 m depending on model
- High-grade mechanical seal
- Stainless shaft, shaft sleeve and nut
- Belt, diesel and motor coupling options
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
