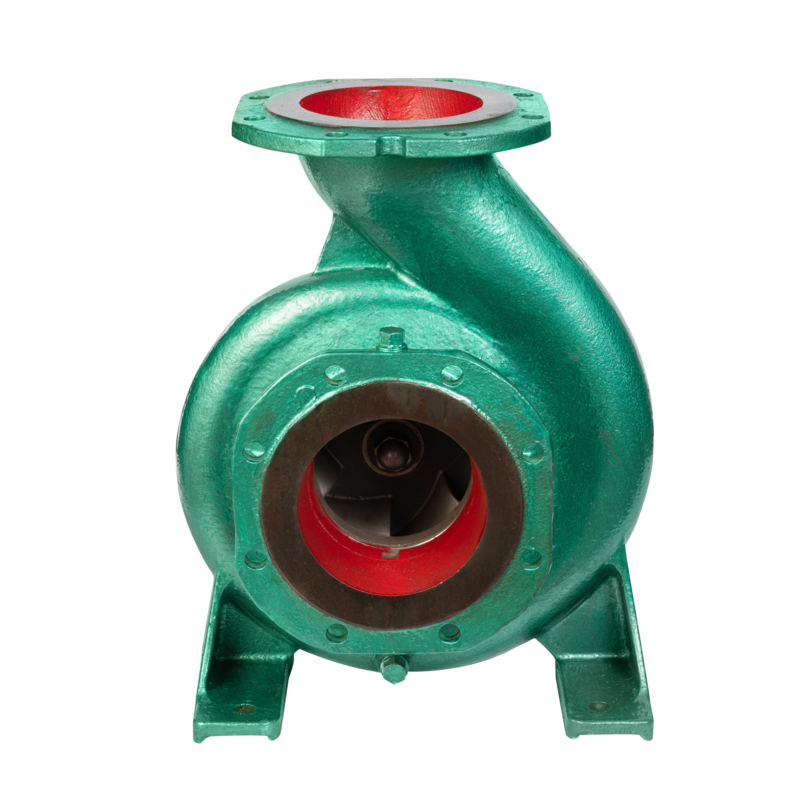

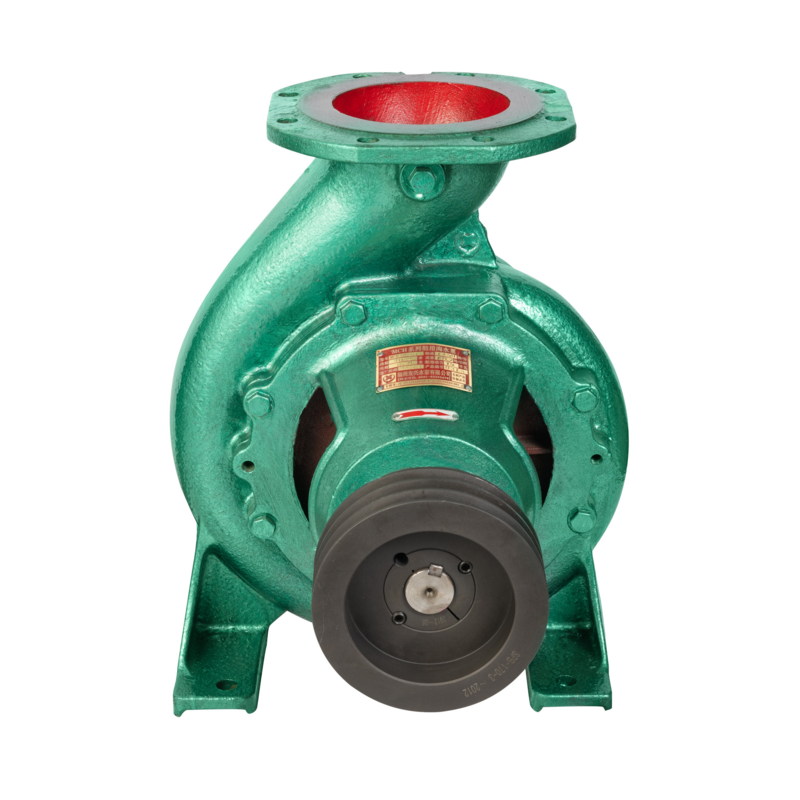

MCH150-20 Marine Seawater Pump
MCH150-20
Marine seawater pump with integrated seal and tapered sleeve drive connection for stable operation.
Model parameters
Data from Yongxing Pump product brochure
- Series
- MCH
- Model
- 150-20
- Suction dia. (mm)
- 150
- Speed (r/min)
- 1450
- Head (m)
- 20.2
- Flow (t/h)
- 169.2
- Suction range (m)
- 7
- Power (kW)
- 15
Application scenarios
- Seawater aquaculture purification
- Live water transport
- Ship freshwater and seawater cooling
- Sanitary, fire, bilge and ballast service
Series features
- Integrated shaft seal for easier installation
- Tapered sleeve connection for flexible axial adjustment
- Straight volute diffusion design to reduce flow resistance
- 304 stainless wet-end parts available on MBH series
- Stable operation and long service life
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
