Product model

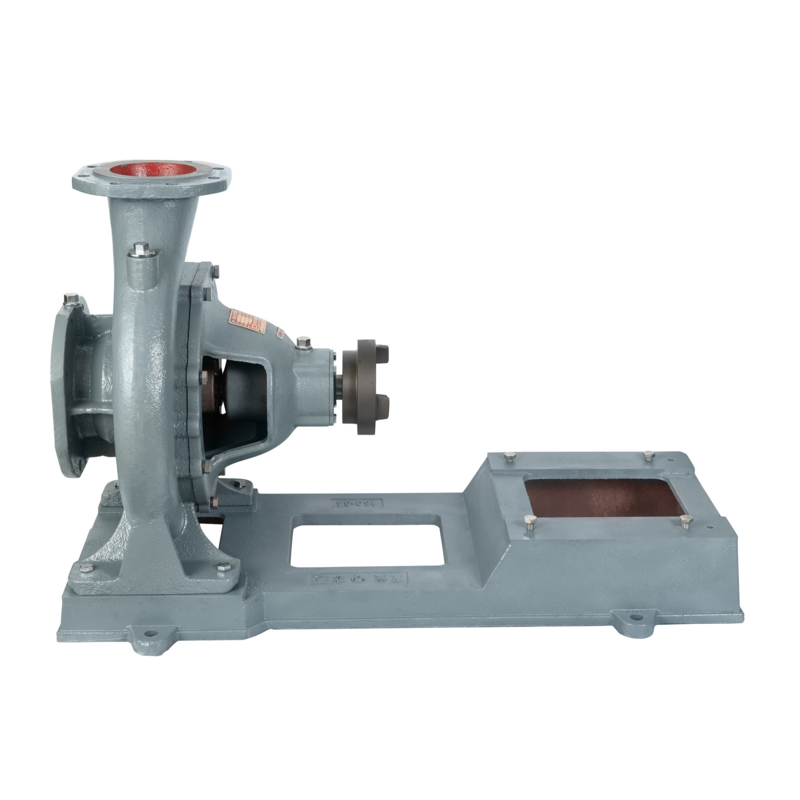

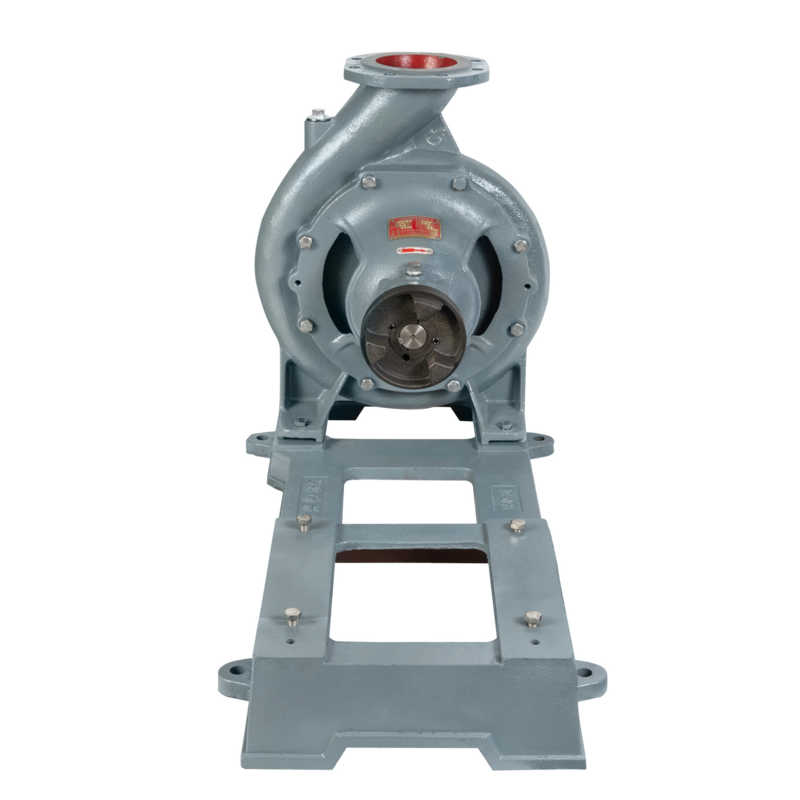

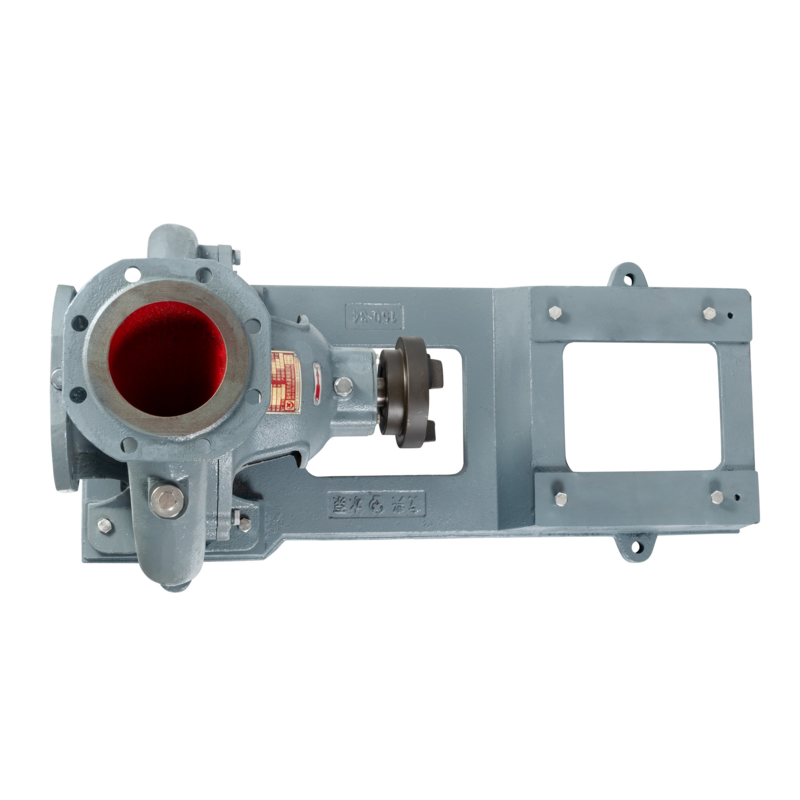

MH150-32 Marine Seawater Pump
MH150-32
Higher-head MH series pump for marine seawater and aquaculture circulation applications.
Model parameters
Data from Yongxing Pump product brochure
- Model
- MH150-32
- Suction dia. (mm)
- 150
- Speed (r/min)
- 1450
- Head (m)
- 32
- Flow (t/h)
- 160
- Suction range (m)
- 7.5
- Power (kW)
- 22
Application scenarios
- Coastal aquaculture
- Live fish transport vessels
- Marine freshwater and seawater cooling
- Bilge and ballast service
Series features
- Simple structure with strong suction, high pressure and large flow range
- 100 mm inlet models cover about 13-25 m head and 70-106 t/h flow
- 150 mm inlet models cover about 11-34 m head and 126-201 t/h flow
- 200 mm and 250 mm inlet models support larger flow seawater transfer
- High-grade wear-resistant mechanical seal with stainless mechanical seal ring, impeller, shaft, sleeve and nut
- Powder-coated castings improve corrosion resistance and make the flow passage smoother
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
