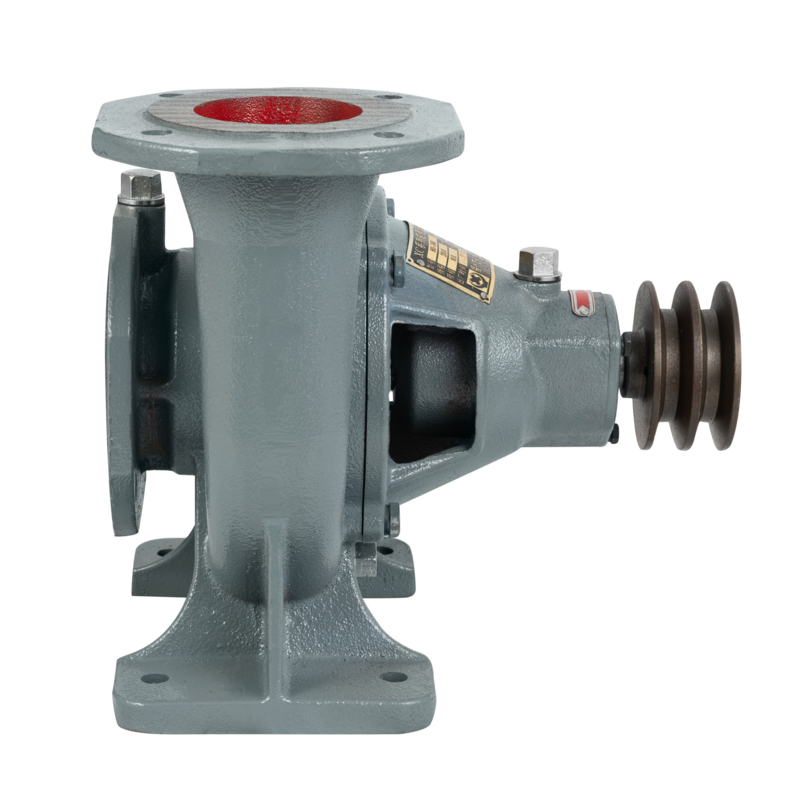

XC Series Light Centrifugal Pumps
Light single-stage centrifugal pumps for small diesel power packages, irrigation, aquaculture and ship auxiliary service.
Application scenarios
- Small diesel powered water transfer
- Agricultural irrigation and drainage
- Fish farming
- Ship bilge and ballast service
Representative models
XC80-140BXC80-140CXC80-140D
Key features
- Compact and reliable design
- Strong suction up to 8 m on listed models
- Stainless shaft and nut
- Mechanical seal structure
- Simple installation for belt, diesel or motor drive
Model Indication
XC 80 - 140 B
- XC: light centrifugal pump series code
- 80: pump suction diameter
- 140: impeller diameter
- B/C/D: belt drive, diesel engine direct drive or electric motor direct drive
Models
Photographed representative models
Click a model to view its photo angles, model description and corresponding parameter row. The full series table below keeps models without current photos for selection reference.
XC series performance parameters
The brochure lists XC80-140 in multiple drive and power configurations.
| Model | Power (kW) | Speed (r/min) | Head (m) | Flow (t/h) | Suction range (m) | Matching power |
|---|---|---|---|---|---|---|
| XC80-140B | 2.2 | 2100 | 10.4 | 47.7 | 7.5 | 2.2 |
| XC80-140C | 4.4 | 2600 | 16 | 59 | 8 | 4.4 |
| XC80-140D | 5.5 | 2900 | 20 | 65 | 8 | 5.5 |
| XC80-140B | 5.5 | 2900 | 20 | 65 | 8 | 5.5 |
