Product model

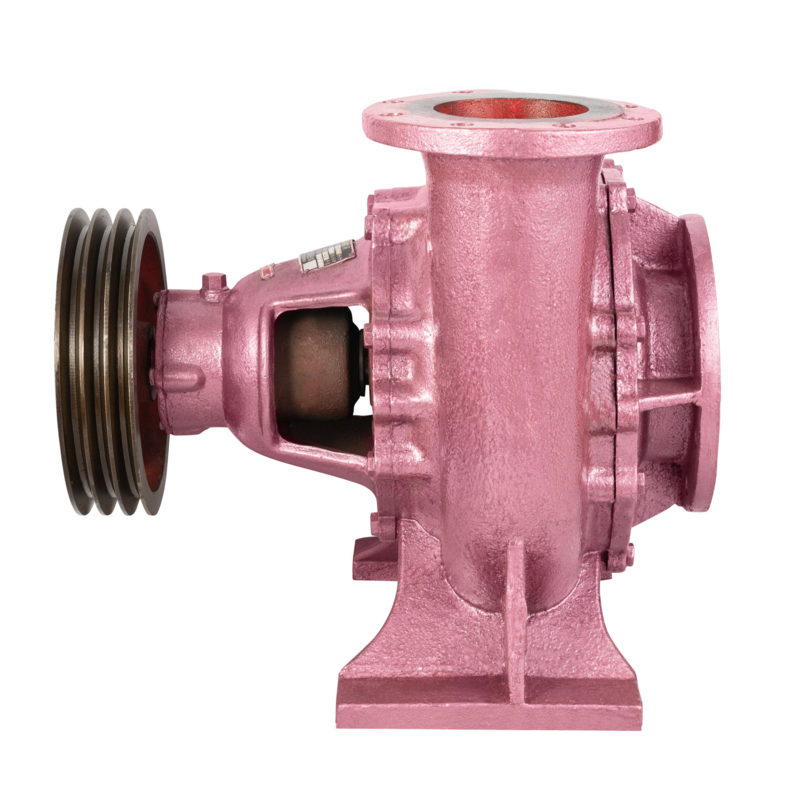

SL10-110 Non-Clogging Impurity Pump
SL10-110
Impurity pump for granular solid-liquid mixtures as well as pulp, sludge and slurry media.
Model parameters
Data from Yongxing Pump product brochure
- Series
- SL
- Model
- SL10-110
- Speed (r/min)
- 980
- Head (m)
- 10
- Flow (t/h)
- 110
- Suction range (m)
- 8
- Power for pulp (kW)
- 7.5
- Power for mortar (kW)
- 11
Application scenarios
- Pulp and industrial short fibers
- Sewage and sludge
- Coal slurry and tailings
- River and pond dredging
- Shellfish and granular solid-liquid mixtures
Series features
- Open flow passage for better solids handling
- Simple and reliable structure
- Two-position oil seal design
- Powder-coated castings
- Designed for abrasive and mixed-media duty
Selection notes
- Confirm required flow and head under the actual operating condition.
- Confirm medium type, temperature, solids content and corrosion requirements.
- Confirm installation direction, inlet/outlet connection and supporting power.
- For engine matching, provide engine model, speed and existing part number if available.
